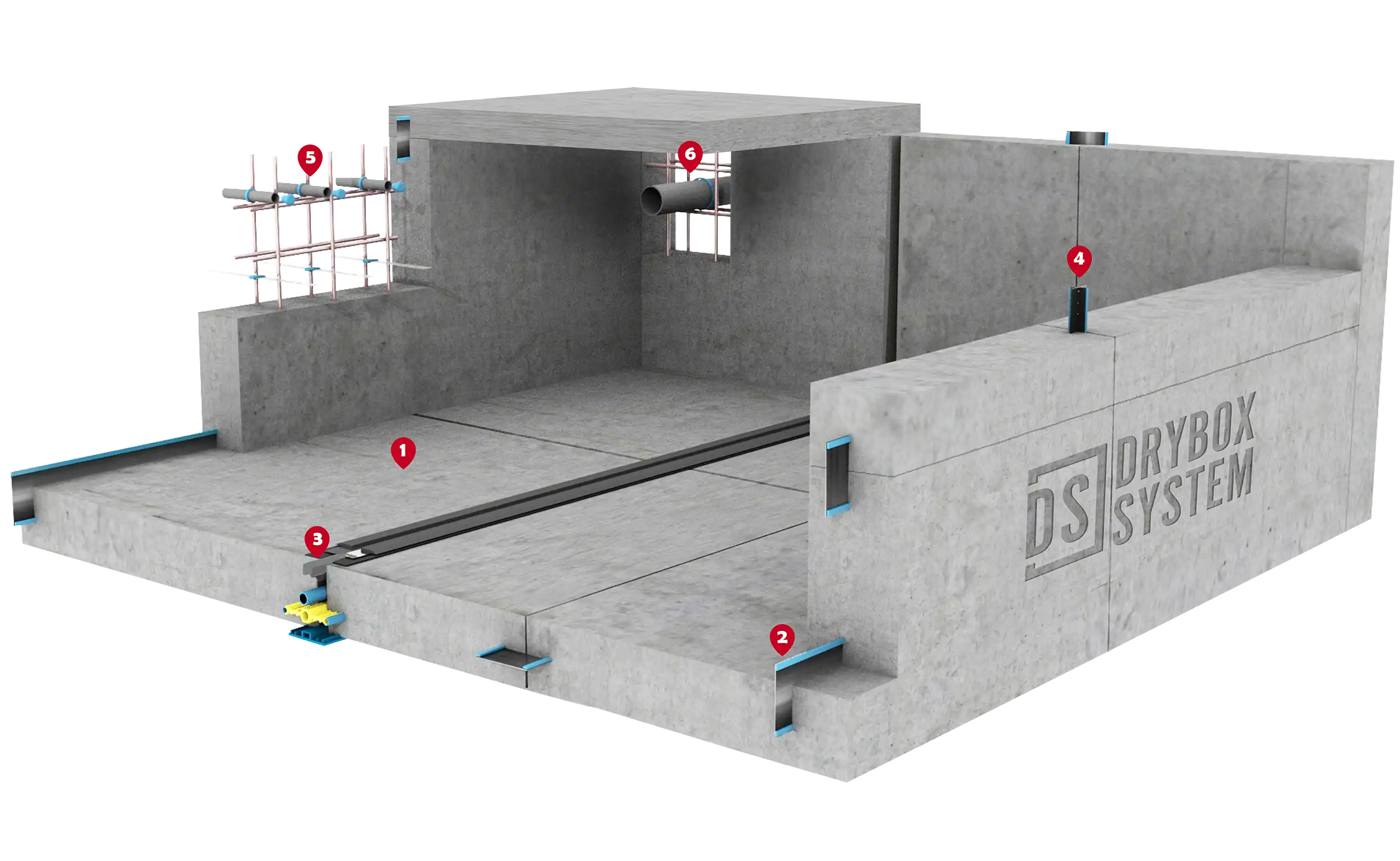

Supershield's DRYBOX system ensures that the structure is completely waterproofed. It makes the concrete structure impermeable to water not only through the concrete matrix but also through the joints, installation parts, service penetrations, cracks, and other defects within the concrete.
The DRYBOX System has a full range of Supershield Crystalline Waterproofing Admixtures, which waterproof the whole concrete mass right from the start. It also has a complete spectrum of products designed for construction joints, penetrations, and crack limits, such as hydrophilic sealants and profiles, waterstops in different material qualities, and sealing tapes, depending on the type and location of the joint and its requirements.
Time is saved during the design and construction stages because complex detailing and installation are no longer required.
The compatibility of multiple products used in the construction of waterproof concrete is ensured.
In comparison to other systems, it is less expensive.
The total amount of material used on the job site is decreased.
Work is completed faster and with less environmental impact while maintaining the durability goal.

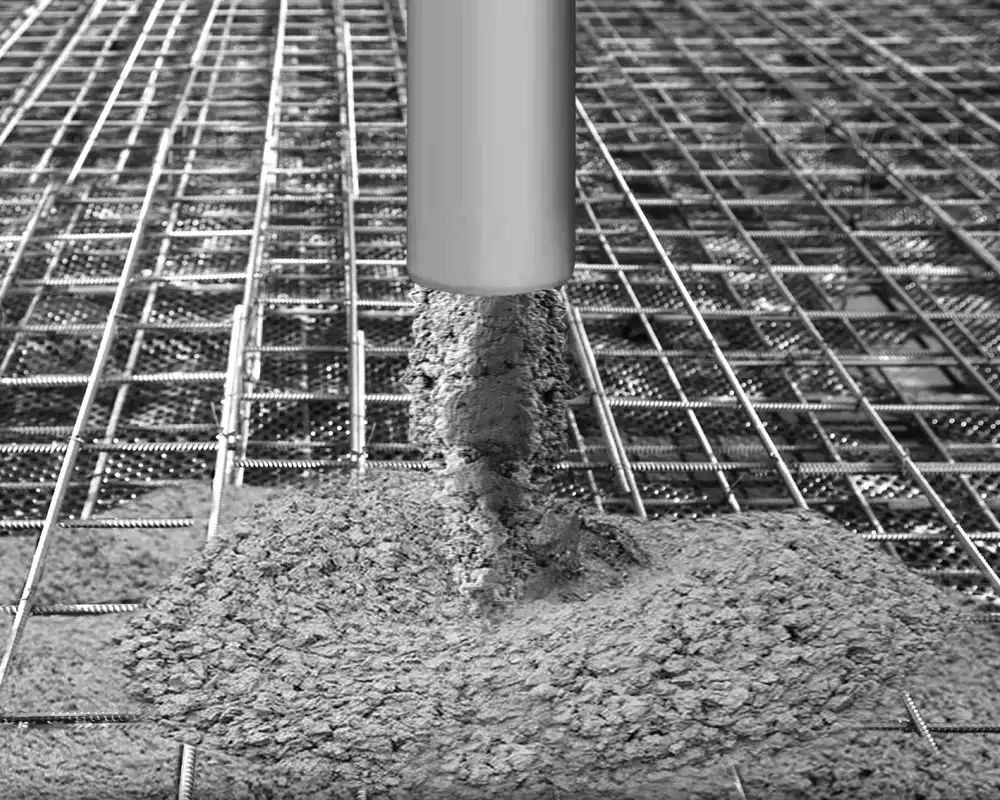

Supershield’s DRYBOX System achieves waterproof concrete with Supershield’s Crystalline Waterproofing Admixtures, which take advantage of concrete’s nature to create an integral reaction that permanently waterproofs and protects the concrete by sealing its pores and capillaries with a non-soluble, highly resistant needle-like crystalline structure that becomes an integral part of the concrete, making it highly durable and impermeable to moisture and other liquids from any direction, even under extreme hydrostatic pressure, and protecting concrete from various harsh environmental conditions that it is subjected to.
This crystalline structure occurs where moisture is present, so at any later stage, if cracks form due to settling or shrinkage, the incoming water triggers the crystallization process and additional crystals begin to grow, and it has the ability to self-heal cracks.
Supershield DPC ADMIXPLUS is a self-healing liquid crystalline admixture for waterproofing, protecting, and improving the durability of concrete.
Supershield ADMIX 100 is a cementitious crystalline admixture with self-healing properties for waterproofing concrete with minimal effect on setting time.
A cutting-edge admixture designed to enhance concrete resilience in extreme climates, managing water, thermal variations, and humidity while preventing freeze damage, ensuring long-term durability and reduced maintenance.

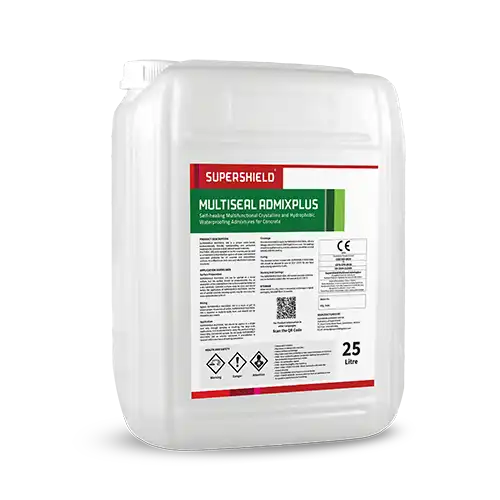

A dual-action admixture combining self-healing crystals and hydrophobic technology to make concrete hydrophobic, iceophobic, and impermeable, ensuring durability in harsh weather, chemical exposure, and coastal conditions.
Construction Joints are introduced in order to facilitate the shrinkage caused due to the large displacements . These are the most likely areas which can result in water ingress. Due to the nature of concrete and reinforced concrete, structures must always be built divided into sections by forming joints. Waterstops are necessary products used for the sealing of construction joints. Waterstops should be used to prevent water transmission at joints and must be installed in all joints to produce a closed joint sealing system.

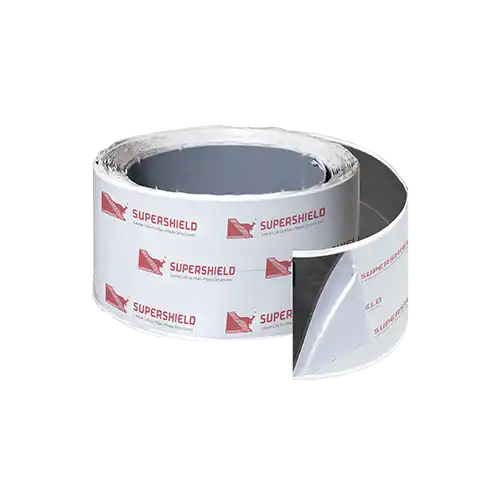

Supershield PANELSTOP are galvanized steel waterstops for Construction Joints.
Supershield PANELSTOP - F are galvanized steel waterstops with Fixing brackets for Construction Joints.

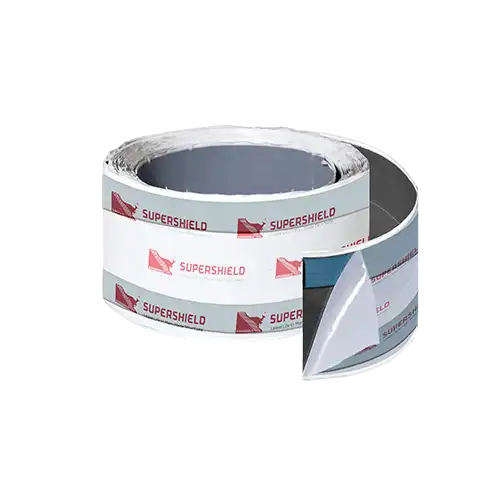

Supershield PANELSTOP SL are galvanized steel waterstops with Swellable lining for Construction Joints .

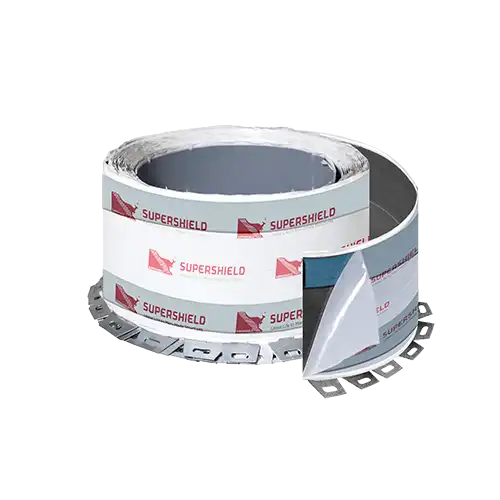

Supershield PANELSTOP SL-F are galvanized steel waterstops with Swellable Lining and Fixing Brackets for Construction Joints .
Supershield SWELLBELT is a dual rubber high performance hydrollic waterstop belt for effectively sealing construction joints and pipe penetrations

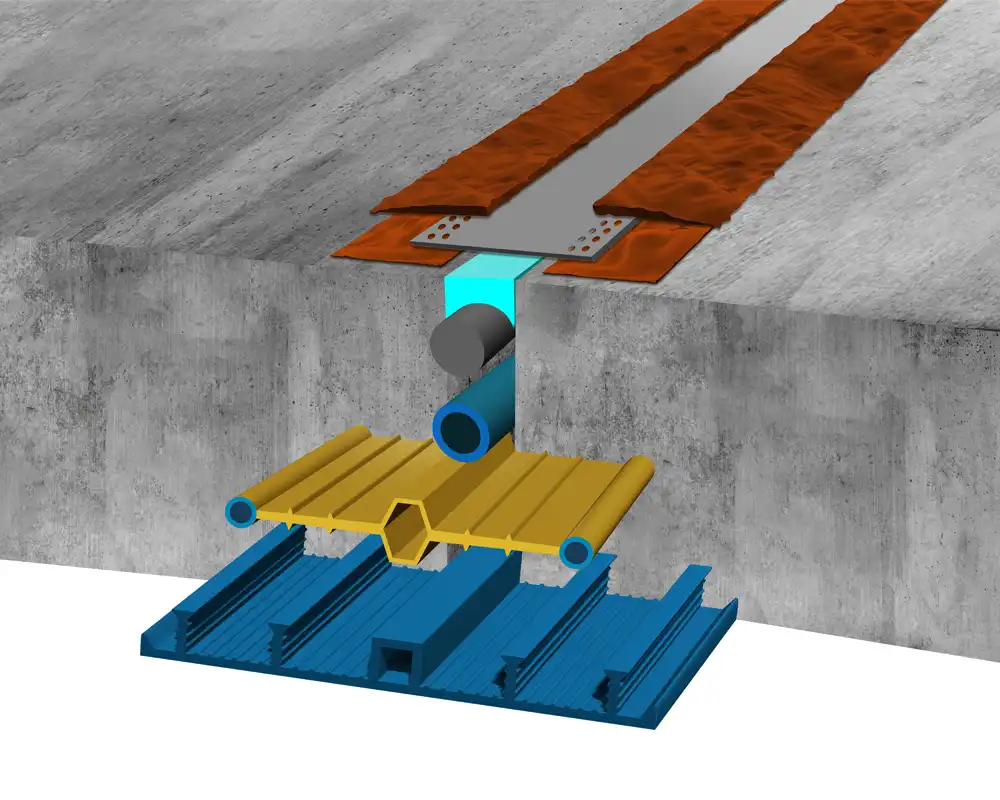

Special attention should be given to the use of waterstops at movement joints. Movement joints are necessary because of movement in the structure as a result of settlement, traffic loads, shrinkage, or other causes. In addition to the function of the waterstops to act as a waterproofing seal in the joint, the waterstop should allow the sections to move independently of each other – without restriction and free from tension.

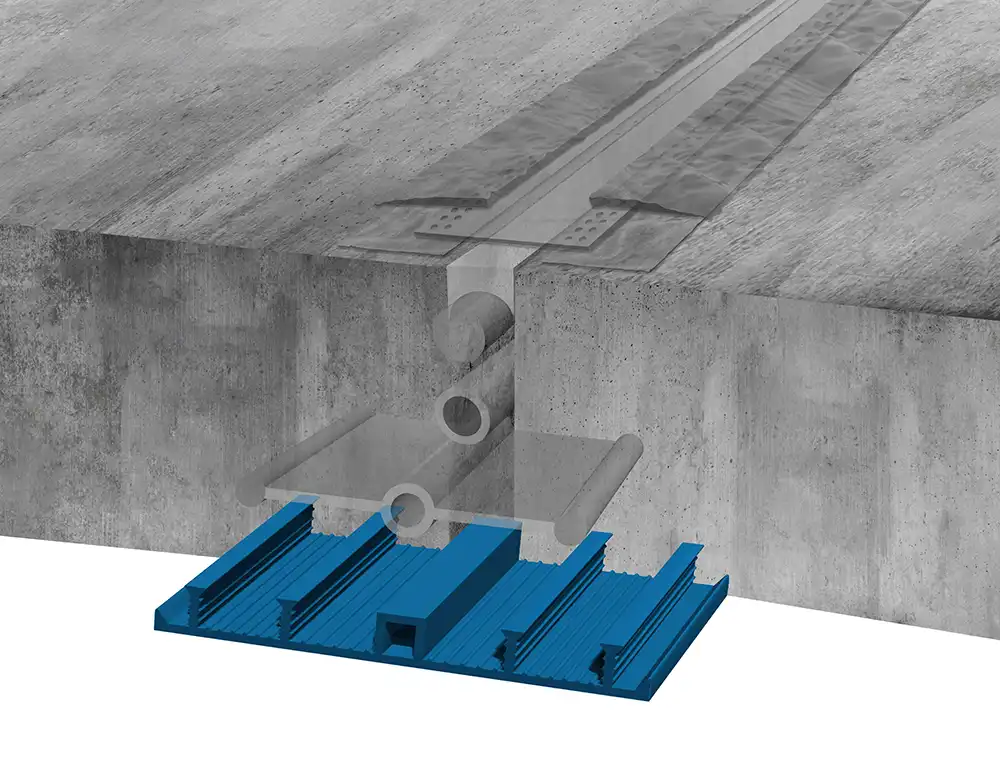

Supershield JOINTBELT Ext B is a Flat, Rigid PVC waterstop for the external side of the construction and expansion joints.
Supershield JOINTBELT B/ SL is a PVC waterstop with a web bulb and swellable lining for effective sealing of the internal section of expansion joints.
Supershield SWELLROD is a unique combination of expanding hydrophilic materials and Non-expanding chloroprene rubber co-extruded together.

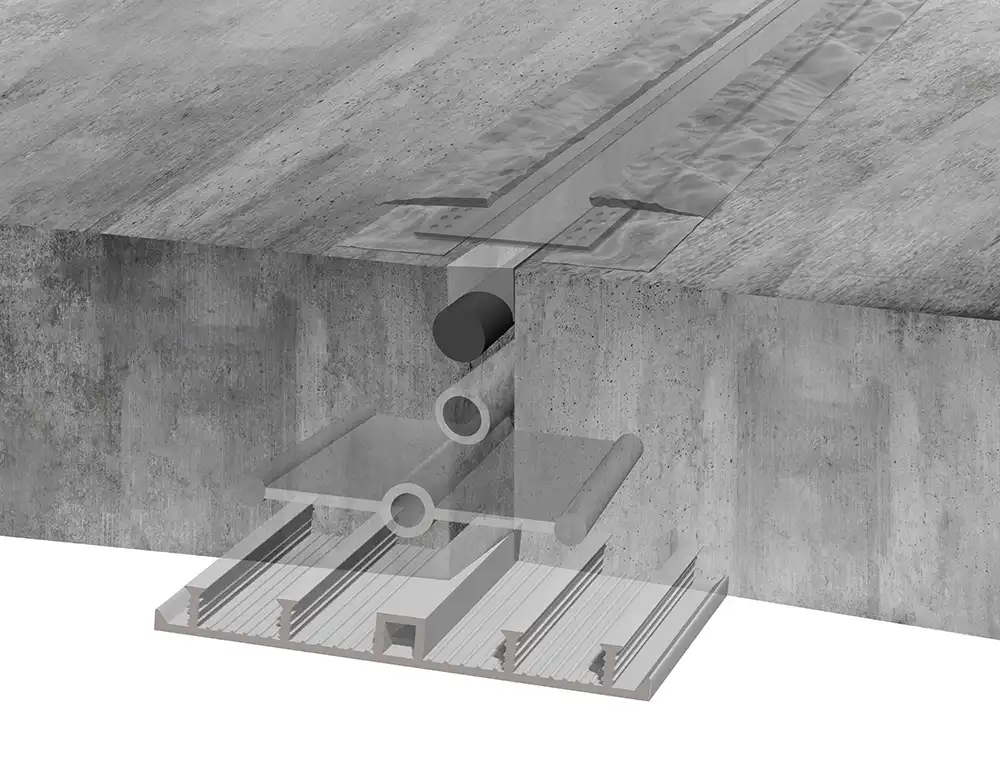

Supershield BACKER ROD is a closed-cell compressible backup material to maintain the sealant profile in expansion joints and gaps.

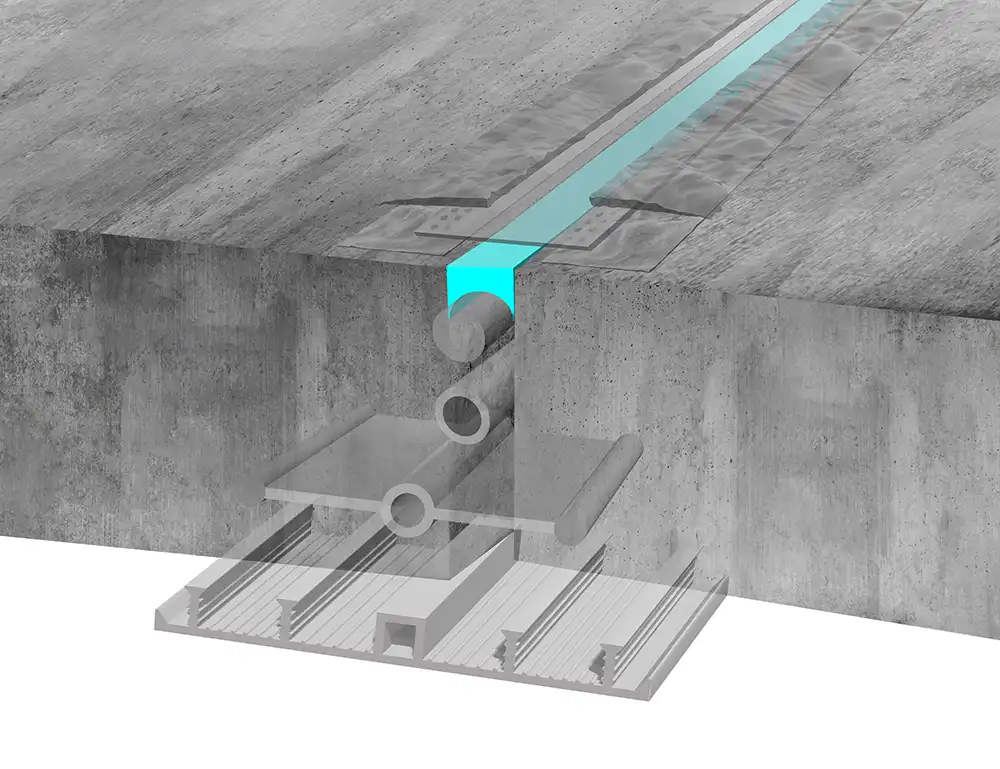

Supershield SEALON EP is a two-component, epoxy-polyurethane elastomeric and thixotropic sealant designed for joints exposed to traffic.

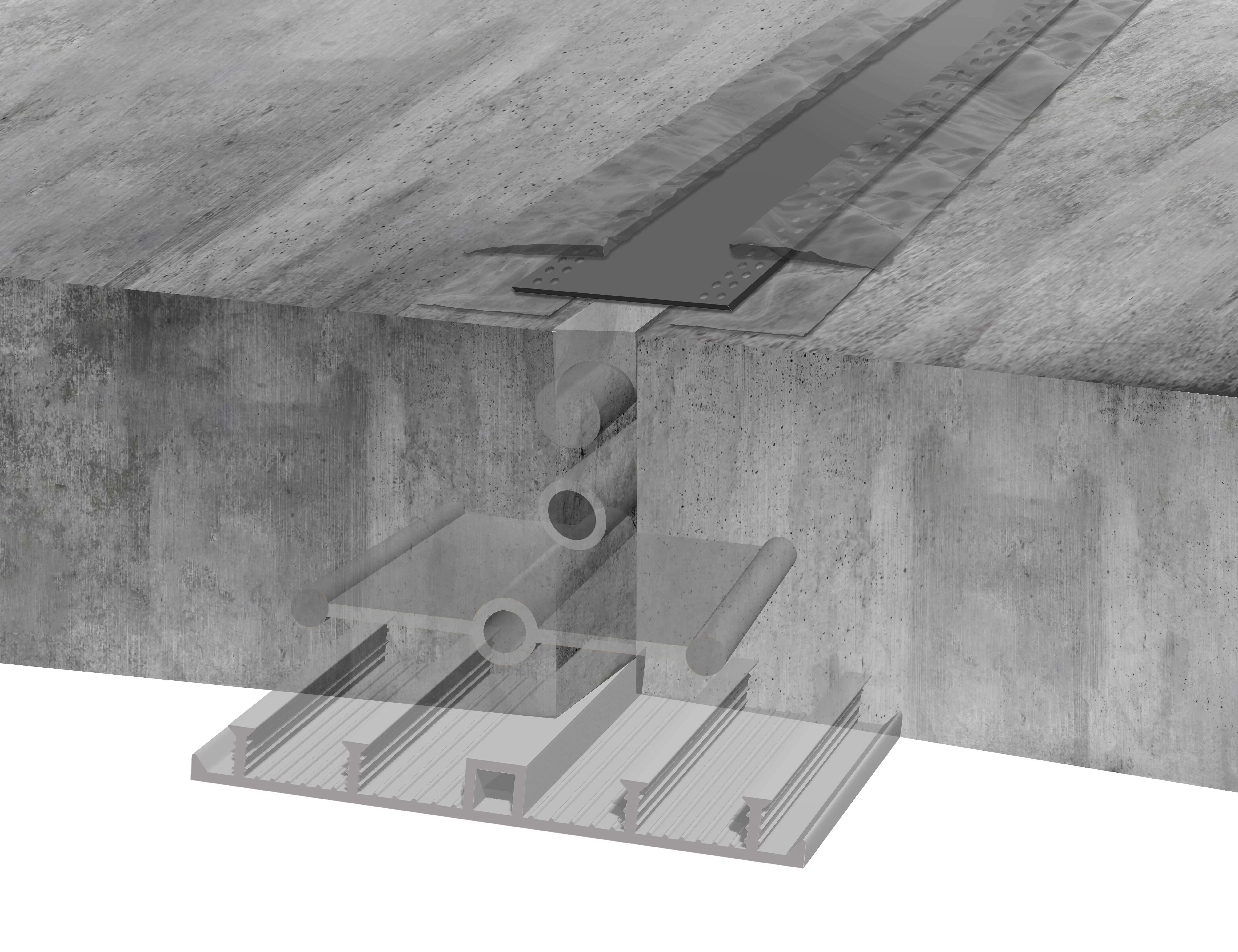

Supershield FLEXSTRIP 250 is a flexible waterstop designed for joints subject to movement.

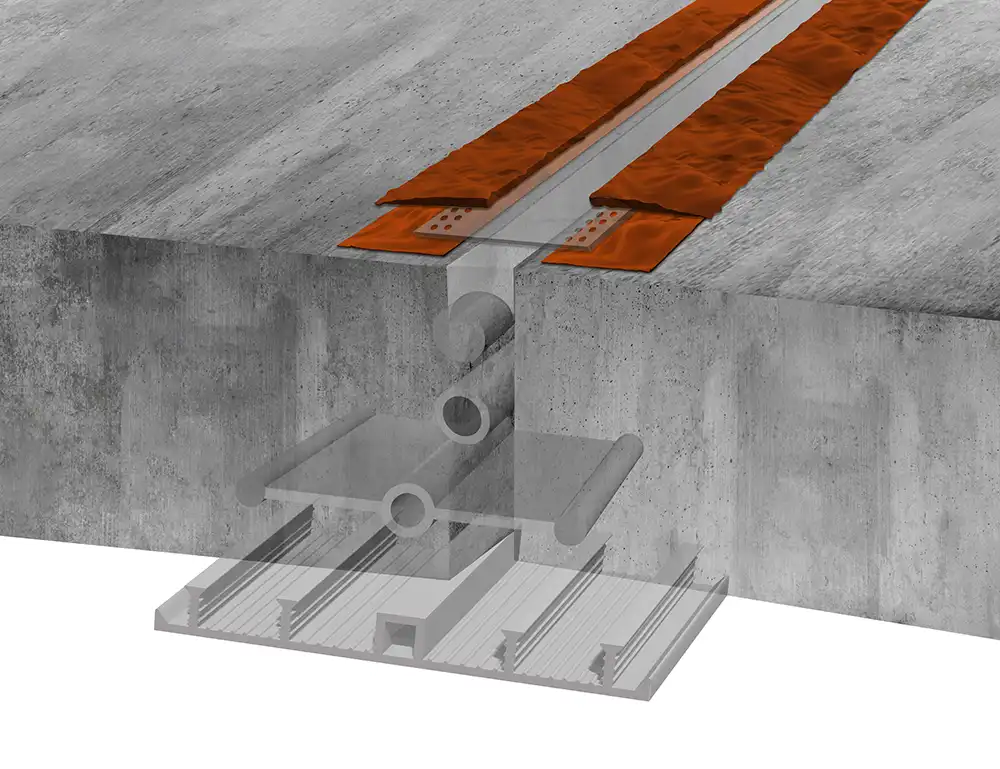

Supershield EPOFIX is a Two component Epoxy adhesives for Civil Engineering Purpose.
Special attention should be given to the use of waterstops at movement joints. Programmed Cracks are planned cracks that add a weak point in the concrete slab and force the small crack to form along the cut rather than appear as a random crack at some more obvious point, and this also allows the release of the additional stress developed in the concrete.

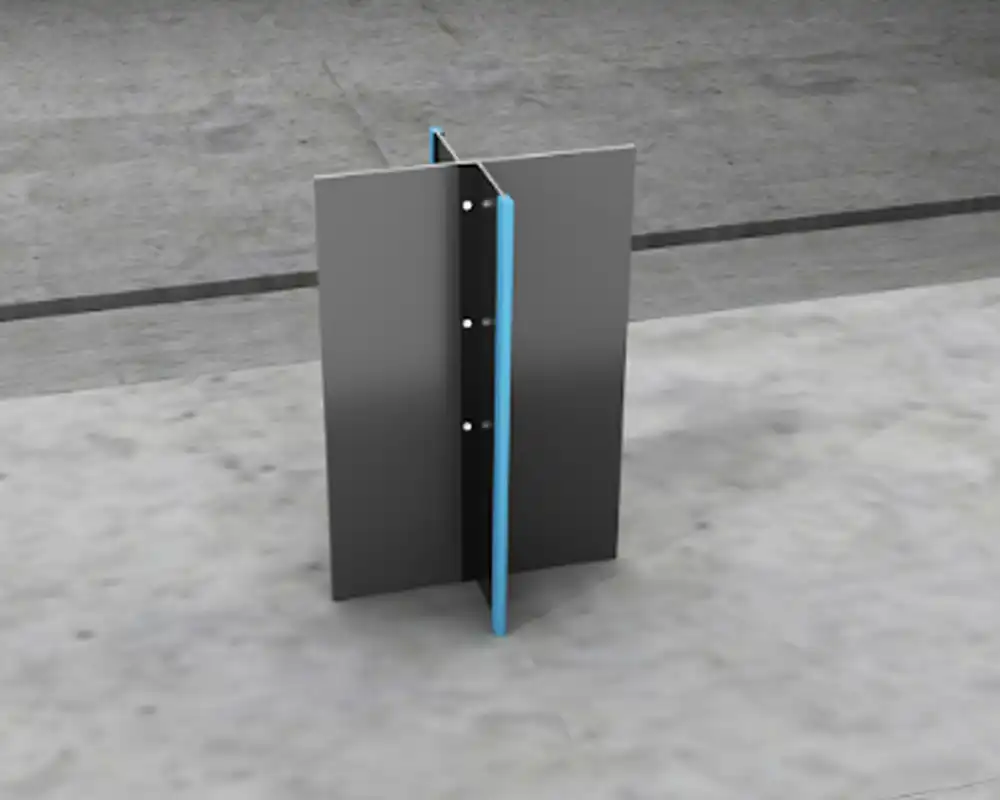

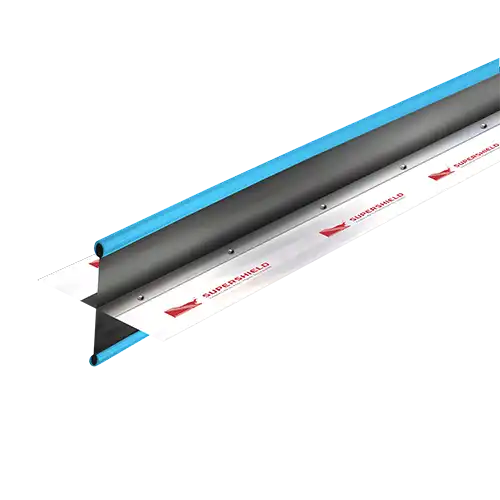

Supershield PANELSTOP CI is a Steel panel waterstop that is rubber coated with swellable lining on crack inducing element.

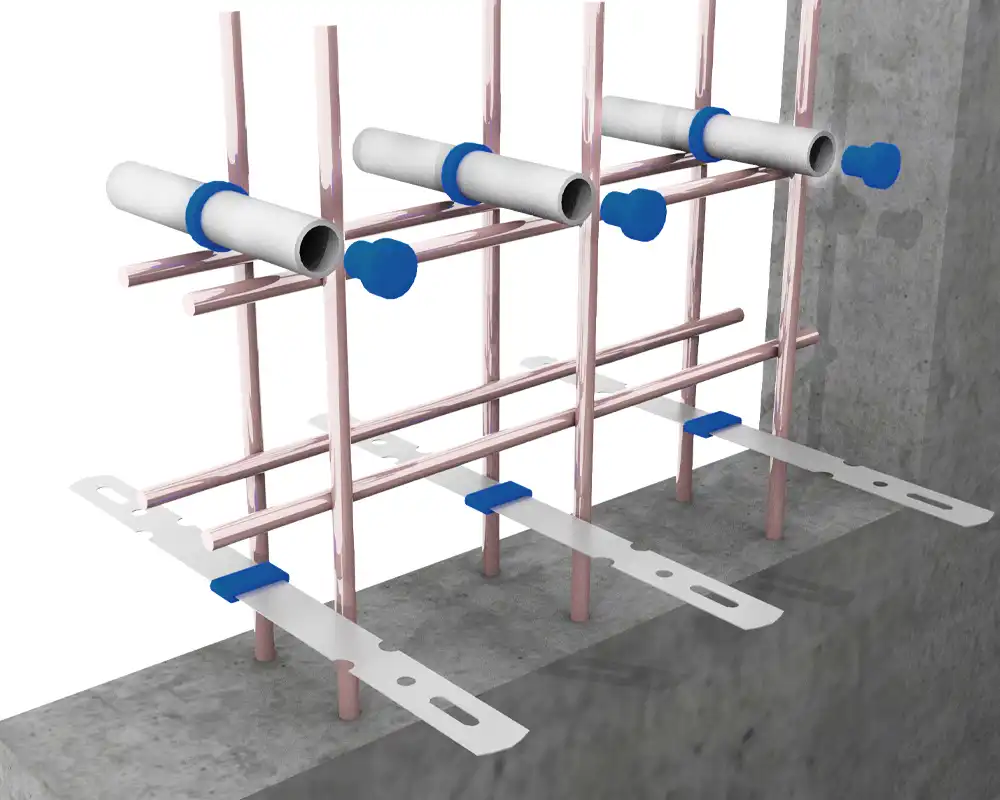

Supershield SWELLPLUG and SWELLRING are easy and secure ways of sealing around all types of formwork spacers (Round and Square). Different sizes are available for the most common spacers. The SWELLPLUG seals the inner ring, whereas the SWELLRING seals around the outside of the spacer.

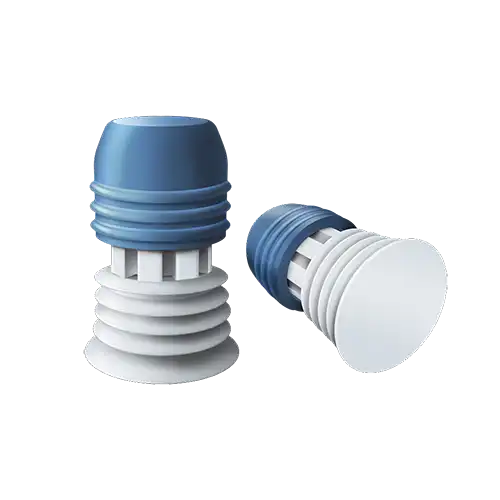

Supershield SWELLPLUG is a Swellable Hydrophilic waterstop that forms a compression seal inside or around the Form Tie holes in the concrete structure.

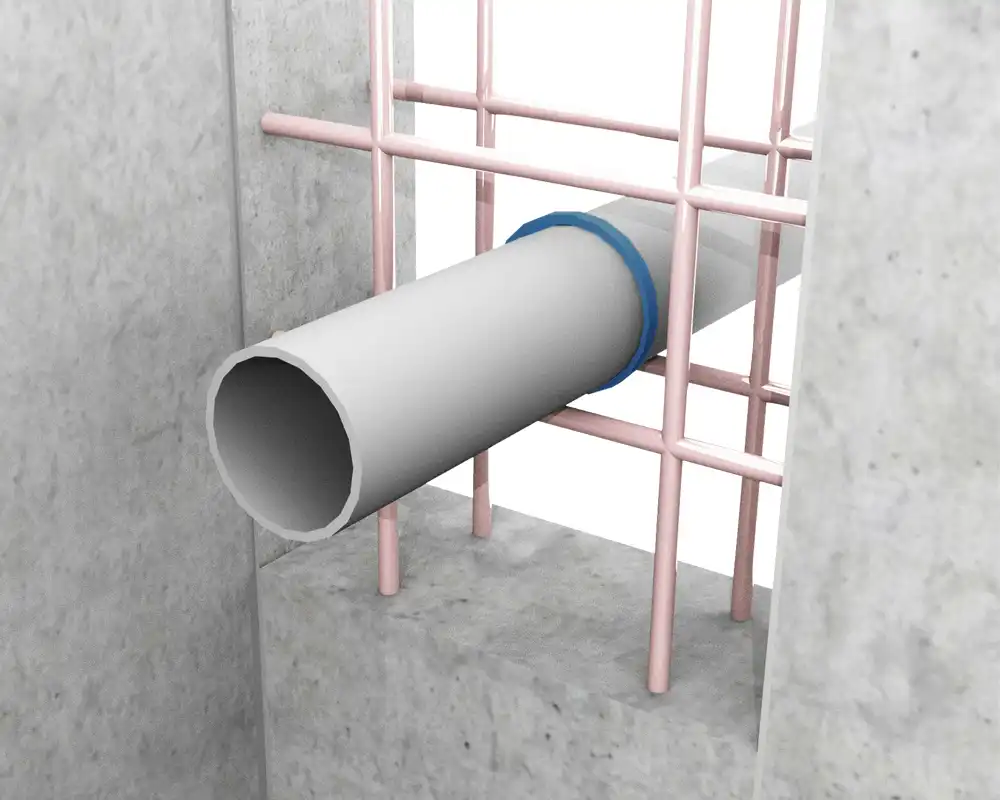

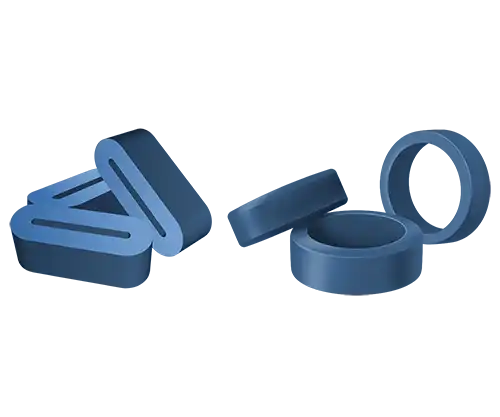

Supershield SWELLRING is a Swellable waterstop ring to seal tie rods and pipe penetrations in concrete.
Supershield SWELLSTOP can seal the penetration and isolation joints between different materials very easily. It can be bonded to many different substrates as well as concrete, including stone, metals, and many plastics.

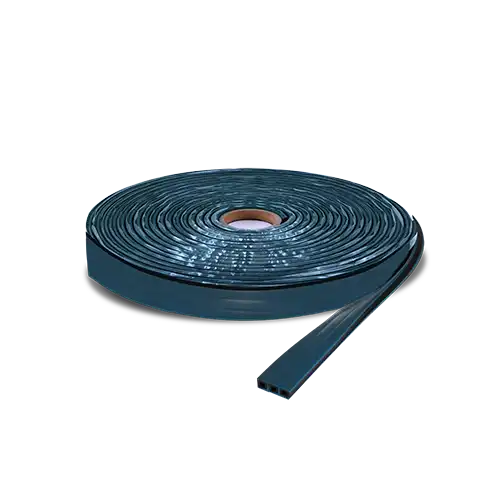

Supershield SWELLBELT is a dual rubber swellable waterstop belt for sealing construction joints in pipe penetrations.

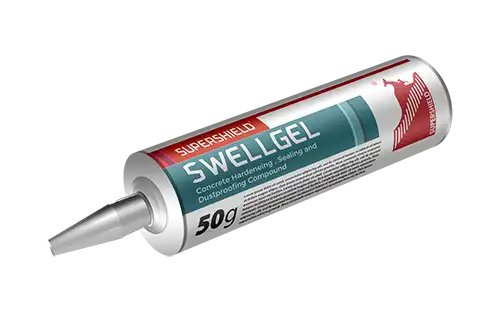

Supershield SWELLGEL is a hydroexpansive sealant for pipe penetrations and fixing SWELLBELT and SWELLINE if additional protection is required.
